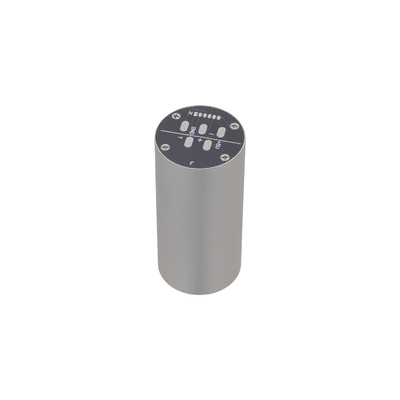

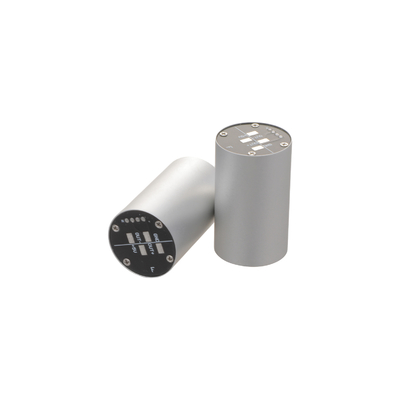

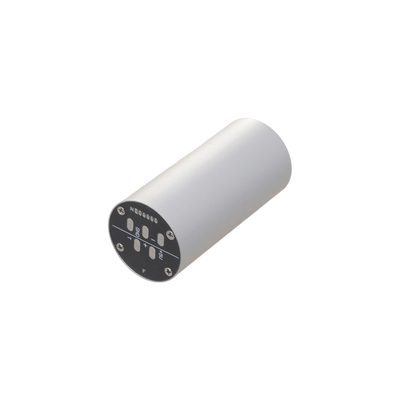

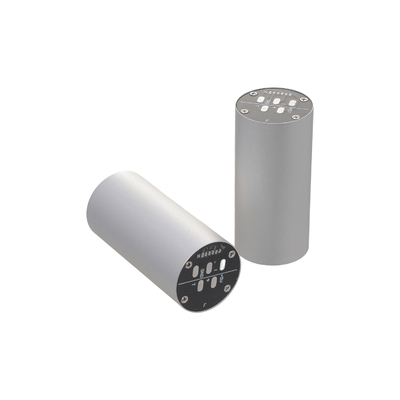

Micro-Nano Integrated Fiber Optic Gyroscope Fizoptika Vg091 for Industrial control

Micro-Nano Integrated Fiber Optic Gyroscope Fizoptika Vg091 for Industrial control

Tên thương hiệu: FIREPOWER
Số mẫu: MFOG-091A
MOQ: 1
giá bán: 1500$
Điều khoản thanh toán: L/C,T/T,Công Đoàn Phương Tây
Khả năng cung cấp: 500/tháng
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Dải đo:
±300°/giây
Tính ổn định không thiên vị (10s, 1σ, °/h):
2°/giờ
Đi bộ ngẫu nhiên góc (°/H1/2):
.040,04°/giờ
Độ lặp lại không sai lệch:
≤2 °/h
Độ ổn định của yếu tố tỷ lệ (RMS,%):
7 ± 0,7mV/o/s
Nguồn điện (V):
5+0,15V
Cấu trúc:
24x51,6mm
Trọng lượng:
30g
chi tiết đóng gói:
miếng bọt biển + hộp
Khả năng cung cấp:
500/tháng
Mô tả sản phẩm

Product Description


MFOG-091A micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.
This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.

 Composition

The product is mainly composed of the following components:
A) an optical path assembly;
B) Detection and control signal circuit board;
C) Optical fiber ring skeleton, shell and other structural parts;



Technical Parameters



Serial number

Project

Performance indicators

1

Range (°/s)

±300

2

Scale factor

7±0.7mv/o/s

3

Scale factor nonlinearity (ppm)

≤1000

4

Zero-bias stability (10s, 1σ, °/H)

≤2

5

Zero-bias repeatability (1σ, °/H)

≤2

6

Angular random walk (°/H 1/2 )

≤0.04

7

Zero bias (°/s)

≤0.05

8

Bandwidth 3dB Band Width (Hz)

≥450

9

Power supply (V)

5+0.15

10

Power Consumption (W)

≤0.7

11

Dimension (mm)

φ24X51.6

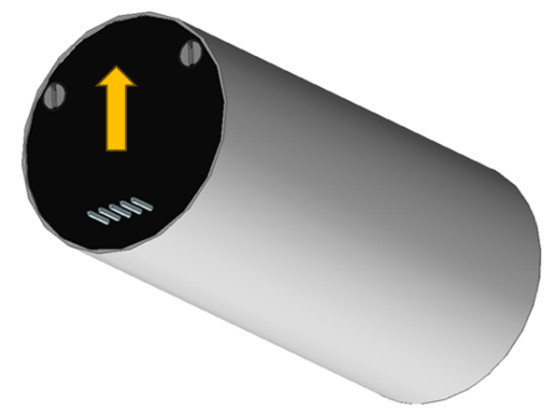

 Outline Drawing

Micro-Nano Integrated Fiber Optic Gyroscope Fizoptika Vg091 for Industrial control 0
