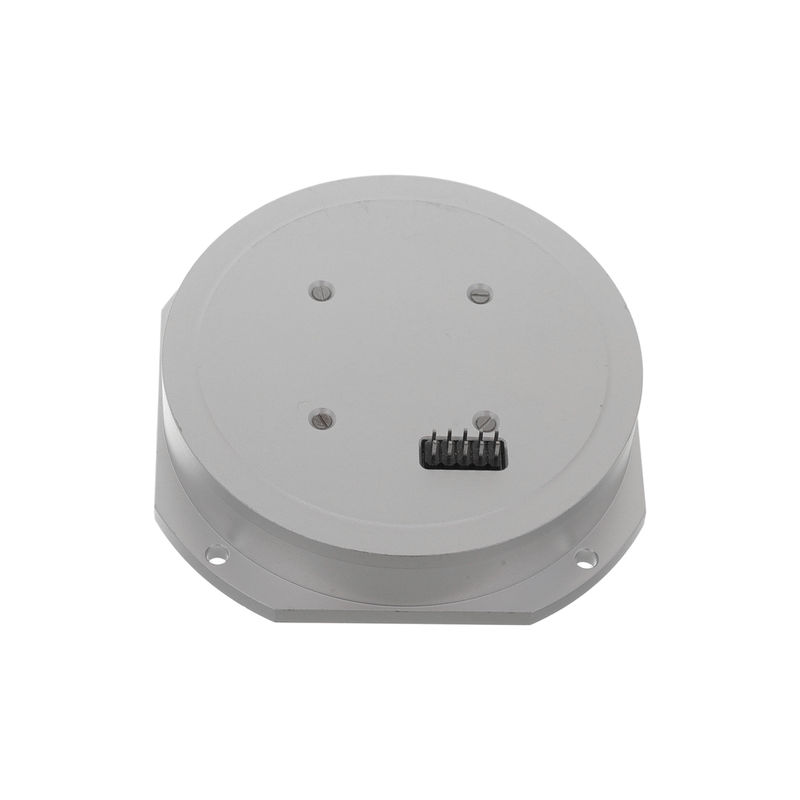

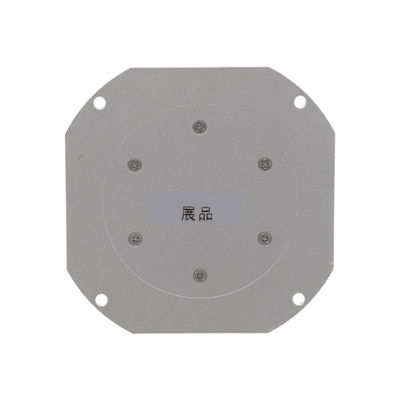

Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor

Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor

Tên thương hiệu: Firepower
Số mẫu: MFOG-910
MOQ: 1
giá bán: 1000$
Điều khoản thanh toán: L/C, D/P, T/T, Liên minh phương Tây
Khả năng cung cấp: 500/tháng
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Phạm vi:
±240°/s
Tính ổn định không thiên vị ((10s, 1σ):
.80,8 ° / giờ
đi bộ ngẫu nhiên góc:
≤0,02°/h
Băng thông 3DB:
≥1000Hz
Độ lặp lại không thiên về ((1σ):
.80,8 ° / giờ
Hệ số tỷ lệ phi tuyến tính:
≤ 1000 ppm
Cân nặng:
≤150g
Tiêu thụ năng lượng:
≤1,5w
chi tiết đóng gói:
Miếng bọt biển + thùng carton
Khả năng cung cấp:
500/tháng
Làm nổi bật:

Fizoptika VG910 fiber optic gyroscope

,

open-loop angular rate sensor

,

fiber optic gyro with warranty

Mô tả sản phẩm
Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor
Key Specifications
Attribute Value
Range ±240°/s
Zero-bias stability (10s, 1σ) ≤0.8°/h
Angular random walk ≤0.02°/h
3dB Bandwidth ≥1000Hz
Zero-bias repeatability (1σ) ≤0.8°/h
Scale factor nonlinearity ≤1000ppm
Weight ≤150g
Power Consumption ≤1.5W
Product Overview

The MFOG-910 is a compact, lightweight, and robust fiber optic gyroscope designed as a replacement for the Fizoptika VG910. Utilizing the Sagnac effect, it precisely measures angular velocity through a micro-nano fiber coil with no moving or wearing parts, ensuring fast startup, long operational life, and high resistance to shock and vibration.

Ideal for UAV, autonomous navigation, robotics, aerospace, and industrial automation, the MFOG-910 delivers high-precision attitude control and inertial measurement with low power consumption and stable performance in demanding environments.

Performance Parameters
Serial Number Project Performance Indicators
1 Range (°/s) ±240
2 Scale factor (mV/°/s) 47±5
3 Scale factor nonlinearity (ppm) ≤1000
4 Zero-bias stability (10s, 1σ, °/H) ≤0.8
5 Zero-bias repeatability (1σ, °/H) ≤0.8
6 3dB Bandwidth (Hz) ≥1000
7 Random walk (°/√H) ≤0.02
8 Power supply (V) 5+0.25+12
9 Power Consumption (W) ≤1.5
10 Impact (g) ≥1500
11 Acceleration (g) ≥70
12 Life (years) (calculated assessment) ≥15
13 MTBF (Calculated Assessment) ≥100000
Product Diagrams

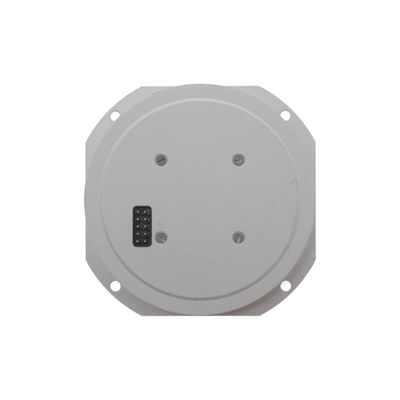

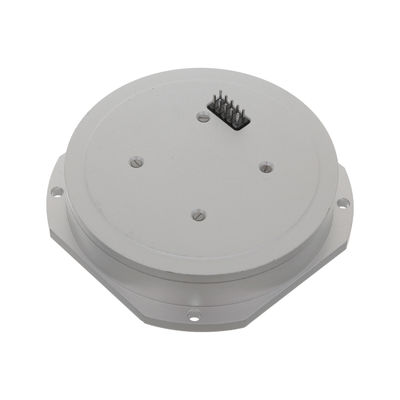

Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor 0 Fizoptika VG910 Open-Loop Fiber Optic Gyroscope Angular Rate Sensor 1
