| Tên thương hiệu: | FIREPOWER |
| Số mẫu: | MFOG-091D |
| MOQ: | 1 |
| giá bán: | 800$ |
| Điều khoản thanh toán: | L/C, T/T, Liên minh phương Tây |
| Khả năng cung cấp: | 500/tháng |

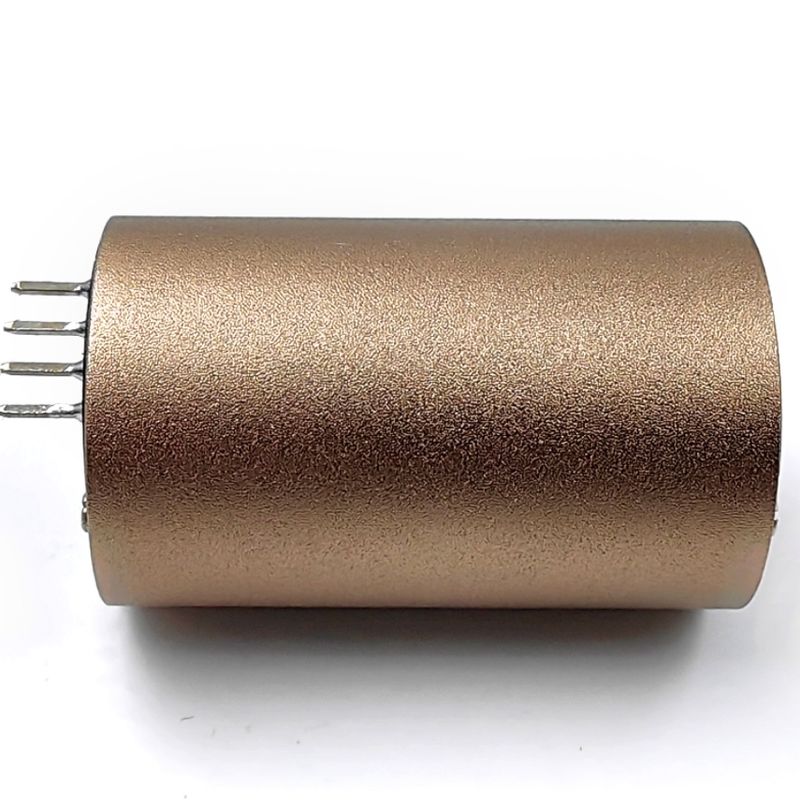

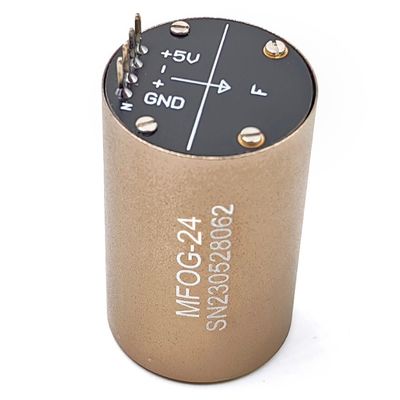

The MFOG-091D micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback the phase difference generated by counter-propagating light beams.

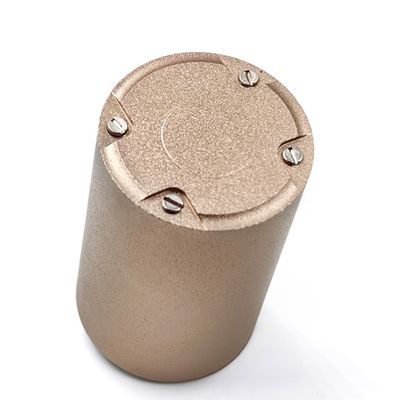

Dimensions: φ24mm × 51.6mm
Weight: ≤30g
|
Serial number |
Project |
Performance indicators |
|
1 |
Range (°/s) |
±300 |
|
2 |
Scale factor (LSB/o/s) |
3600 |
|
3 |
Scale factor stability (RMS,%) |
≤0.1 |
|
4 |
≤3 |
|
|
5 |
Zero-bias repeatability (1σ, °/H) |
≤2 |
|
6 |
Angular random walk (°/H1/2) |
≤0.02 |
|
7 |
Start-up Time (s) |
≤2 |
|
8 |
Power supply (V) |
5+0.15 |
|
9 |
Power Consumption (W) |
≤1.5 |
|
10 |
MTBF (Calculated Assessment) |
50000h @ 20℃ |
Power Requirements
The external power supply to the product has two circuits, and the requirements are shown in Table 2:
Table 2 External Power Supply Requirements
|
|
+5V |
|
Voltage |
4.85V~5.15V |
|
Ripple |
20mV |
|
Electric current |
0.2A |
Electrical interface

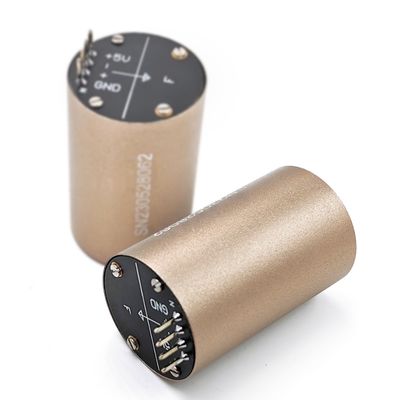

The MFOG-091D micro-nano fiber optic gyroscope is electrically connected to the outside by a bonding pad.
It is defined as follows:
|
Node number |
Color |
Definition |
|
1 |
GND |
Ground |
|
2 |
+5V |
Power supply |
|
3 |
YA |
RS422 T+ |
|
4 |
YB |
RS422 T- |
|
5 |
B |
RS422 R- |
|
6 |
A |
RS422 R+ |
