Airborne Fiber Optic Gyroscope System VG910 Sensor for Gimbal Stabilization

Airborne Fiber Optic Gyroscope System VG910 Sensor for Gimbal Stabilization

Tên thương hiệu: Firepower
Số mẫu: MFOG-910
MOQ: 1
giá bán: 1000$
Điều khoản thanh toán: L/C, D/P, T/T, Liên minh phương Tây
Khả năng cung cấp: 500/tháng
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Phạm vi:
±240°/s
Tính ổn định không thiên vị ((10s, 1σ):
.80,8 ° / giờ
Đi bộ ngẫu nhiên góc cạnh:
≤0,02 °/h
Băng thông 3DB:
≥1000Hz
Độ lặp lại không thiên về ((1σ):
.80,8 ° / giờ
Yếu tố quy mô phi tuyến:
≤ 1000 ppm
Cân nặng:
≤150g
Tiêu thụ năng lượng:
≤1,5W
chi tiết đóng gói:
Miếng bọt biển + thùng carton
Khả năng cung cấp:
500/tháng
Làm nổi bật:

fiber optic gyroscope gimbal stabilization

,

VG910 gyro sensor system

,

airborne fiber optic gyro

Mô tả sản phẩm
Airborne Fiber Optic Gyroscope System VG910 Sensor for Gimbal Stabilization
Fizoptika VG910 Copy Fiber Optic Gyroscope ±240°/s Range ≤0.8°/h Stability

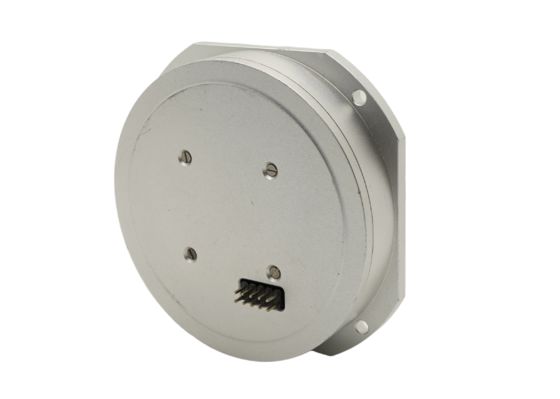

Airborne Fiber Optic Gyroscope System VG910 Sensor  for Gimbal Stabilization 0
Key Specifications
Attribute Value
Range ±240°/s
Zero-bias stability (10s, 1σ) ≤0.8°/h
Angular random walk ≤0.02°/h
3dB Bandwidth ≥1000Hz
Zero-bias repeatability (1σ) ≤0.8°/h
Scale factor nonlinearity ≤1000ppm
Weight ≤150g
Power Consumption ≤1.5W
Product Overview
The MFOG-910 Micro-Nano Fiber Optic Gyroscope is a compact, high-precision angular rate sensor based on the Sagnac effect. It features an all-solid-state design with temperature compensation, ensuring high reliability, fast startup, and a long service life of over 15 years. With excellent shock (≥1500g) and vibration (≥70g) resistance, as well as low power consumption (≤1.5W) and lightweight construction (≤150g), it is ideal for precise attitude control and inertial navigation in dynamic platforms.
Detailed Performance Parameters
Parameter Specification
Range (°/s) ±240
Scale factor (mV/°/s) 47±5
Scale factor nonlinearity (ppm) ≤1000
Zero-bias stability (10s, 1σ, °/H) ≤0.8
Zero-bias repeatability (1σ, °/H) ≤0.8
3dB Bandwidth (Hz) ≥1000
Random walk (°/√H) ≤0.02
Power supply (V) 5+0.25+12
Power Consumption (W) ≤1.5
Impact (g) ≥1500
Acceleration (g) ≥70
Life (years) ≥15
MTBF (Calculated Assessment) ≥100000
Product Diagrams

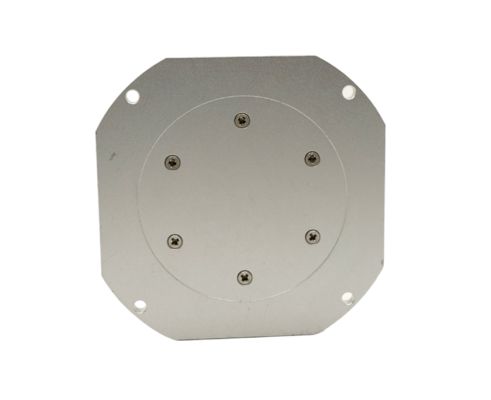

Airborne Fiber Optic Gyroscope System VG910 Sensor  for Gimbal Stabilization 1
Front View Diagram

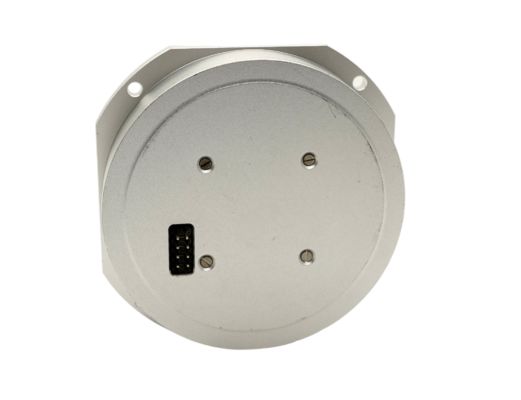

Airborne Fiber Optic Gyroscope System VG910 Sensor  for Gimbal Stabilization 2
Side View Diagram
