| Tên thương hiệu: | Firepower |
| Số mẫu: | MFOG-1703 |
| MOQ: | 1 |
| giá bán: | 700USD |
| Điều khoản thanh toán: | L/C,T/T |
| Khả năng cung cấp: | 500/tháng |

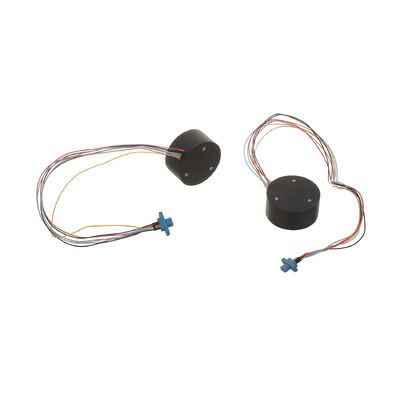

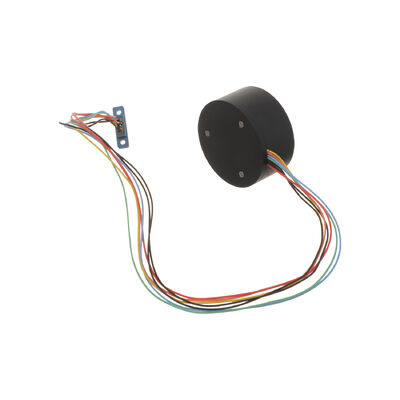

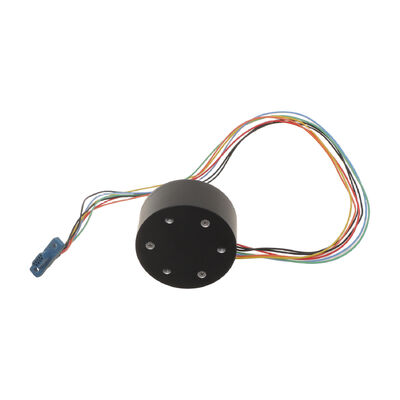

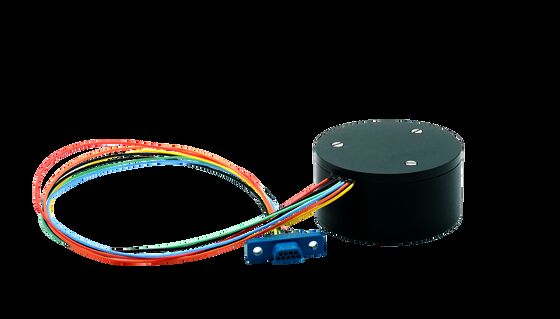

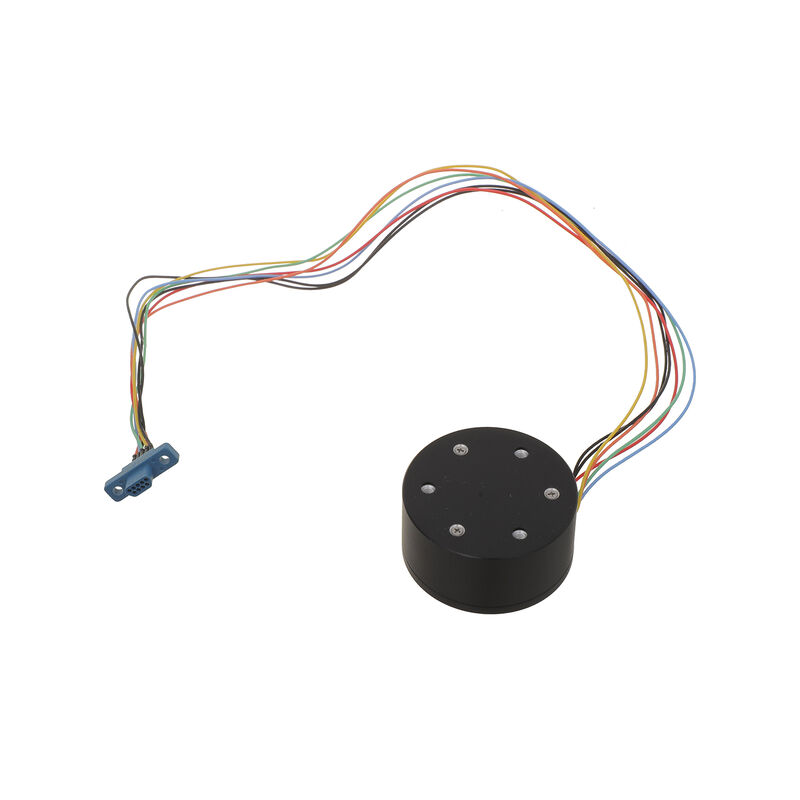

The MFOG-1703 micro-nano fiber optic gyroscope is a compact, lightweight angular rate sensor developed using advanced fiber-optic sensing technology. By detecting the phase shift of counter-propagating light waves, it accurately measures angular motion with high stability and low noise.
| Parameter | Performance Indicators |
|---|---|
| Range (°/s) | ±150 |
| Scale factor (mV/°/s) | 12±1.2 |
| Zero-bias stability (10s, 1σ, °/h) | ≤1 |
| Zero-bias repeatability (1σ, °/h) | ≤1 |
| Angular random walk (°/h1/2) | ≤0.02 |
| Zero-bias temperature sensitivity (μV/°C) | ≤1 |
| Scale Factor Temperature Sensitivity (ppm/°C) | ≤300 |
| 3dB Bandwidth (Hz) | ≥450 |
| Impact (g) | 1200, 1ms, half sine |
| Power supply (V) | 5 ± 0.25 |
| Power Consumption (W) | ≤1 |
| Dimension (mm) | φ40 × 20 |
