| Tên thương hiệu: | Firepower |
| Số mẫu: | MFOG-40 |
| MOQ: | 1 |
| giá bán: | 700$ |
| Điều khoản thanh toán: | L/C,D/A,D/P,T/T,Western Union |
| Khả năng cung cấp: | 500/tháng |

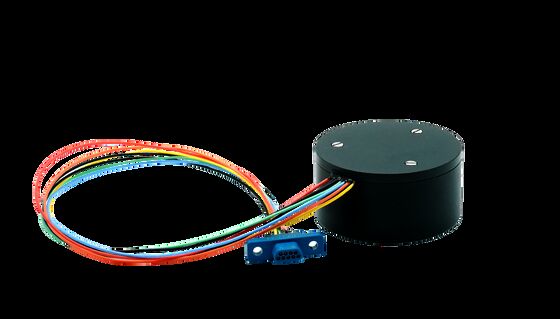

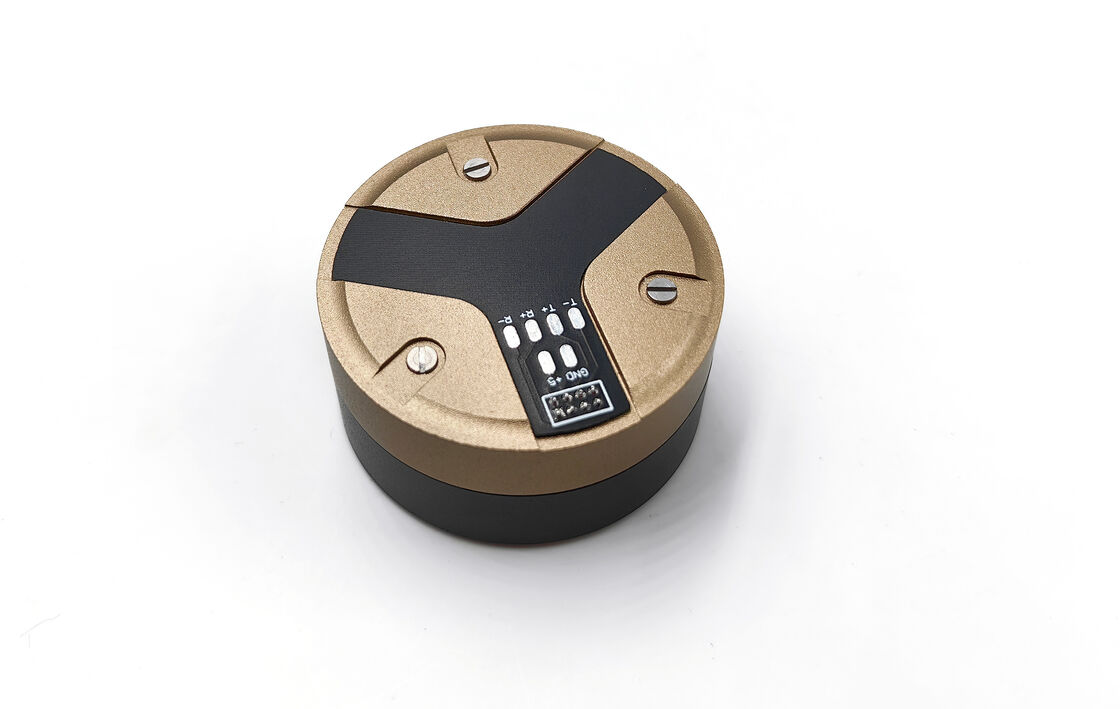

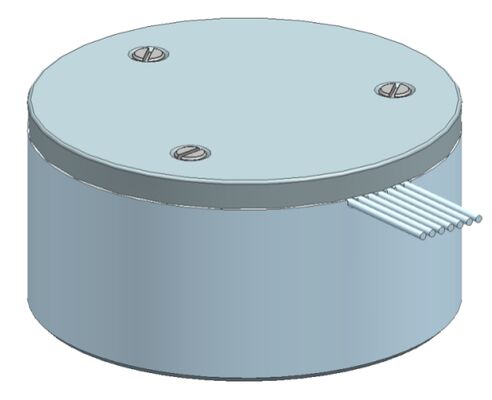

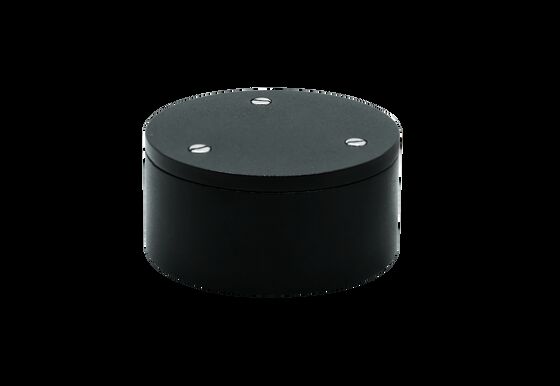

MFOG-40 is a compact micro-nano fiber optic gyroscope featuring three M3 mounting threads for straightforward integration. This commercial grade inertial sensor delivers exceptional performance with ±300°/s range, low zero-bias stability (≤0.8°/h), and angular random walk ≤0.02°/√h, making it ideal for drones, autonomous vehicles, and mobile platforms.
| Parameter | Specification |
|---|---|
| Range (°/s) | ±300 |
| Scale Factor (LSB/°/s) | 3600 |
| Scale Factor Nonlinearity (ppm) | ≤500 |
| Zero-Bias Stability (10s, 1σ, °/h) | ≤0.8 |
| Zero-Bias Repeatability (1σ, °/h) | ≤0.8 |
| Angular Random Walk (°/h¹/²) | ≤0.02 |
| Zero-Bias Stability Full Temperature (-40℃ to +65℃, 10s, 1σ, °/h) | ≤1.5 |
| 3dB Bandwidth (Hz) | ≥300 |
| Power Supply (V) | 5+0.15 |
| Power Consumption (W) | ≤1.5 |

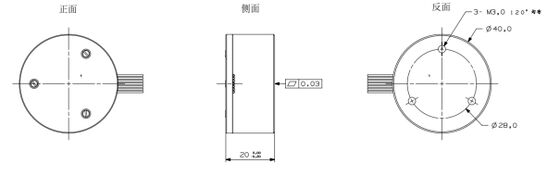

| Dimensions (mm) | φ40 * 20 |
