| Tên thương hiệu: | Firepower |
| Số mẫu: | MFOG-910 |
| MOQ: | 1 |
| giá bán: | 700$ |
| Điều khoản thanh toán: | L/C,D/A,D/P,T/T,Western Union |
| Khả năng cung cấp: | 500/tháng |

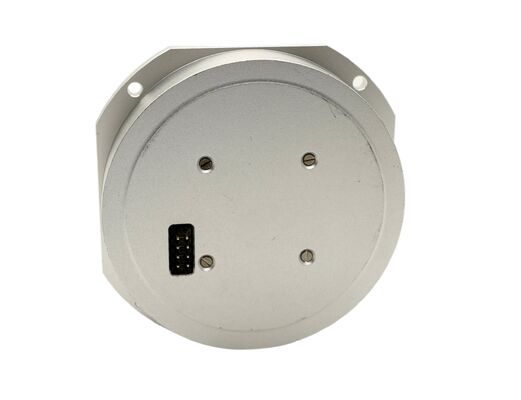

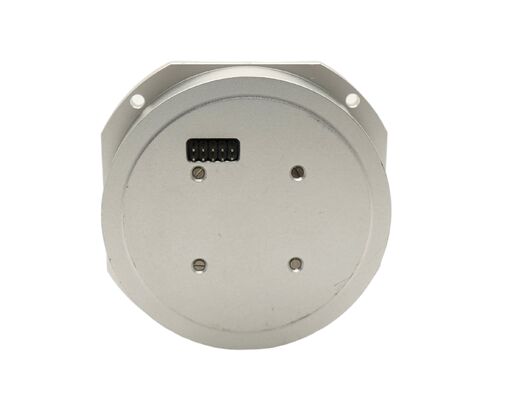

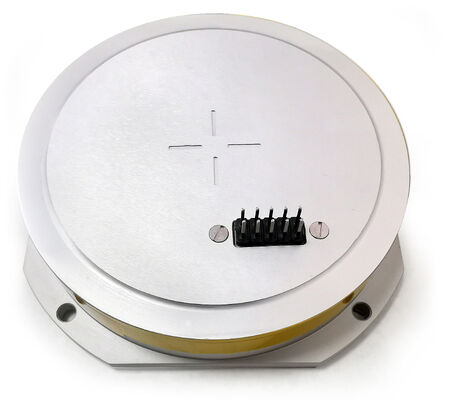

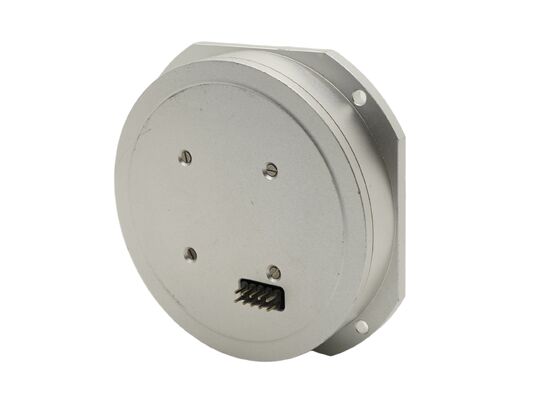

The MFOG-910 micro-nano fiber optic gyroscope is an opto-mechatronic integrated angular rate sensor engineered for precision attitude control and navigation in drone applications.
This advanced gyroscope features a scale factor of 47±5 mV/°/s, scale factor nonlinearity ≤1000 ppm, and 3dB bandwidth ≥1000Hz, making it ideal for precision instrument attitude measurement. With its compact dimensions (82mm*82mm*19.5mm) and lightweight design (≤150g), it can be easily integrated into small-sized precision equipment.
The MFOG-910 consists of three main components:
| Parameter | Specification |
|---|---|
| Range (°/s) | ±240 |
| Scale Factor (mV/°/s) | 47±5 |
| Scale Factor Nonlinearity (ppm) | ≤1000 |
| Zero-bias Stability (10s, 1σ, °/H) | ≤0.8 |
| Zero-bias Repeatability (1σ, °/H) | ≤0.8 |
| 3dB Bandwidth (Hz) | ≥1000 |
| Random Walk (°/√H) | ≤0.02 |
| Power Supply (V) | 5±0.25±12 |
| Power Consumption (W) | ≤1.5 |
| Impact (g) | ≥1500 |
| Acceleration (g) | ≥70 |
| Life (years) | ≥15 |
| MTBF | ≥100,000 |
