| Tên thương hiệu: | Firepower |
| Số mẫu: | F50 Cuộn dây cáp quang độc lập |
| MOQ: | 1 |
| giá bán: | 700$ |
| Điều khoản thanh toán: | L/C,D/A,D/P,T/T,Western Union |
| Khả năng cung cấp: | 500/tháng |

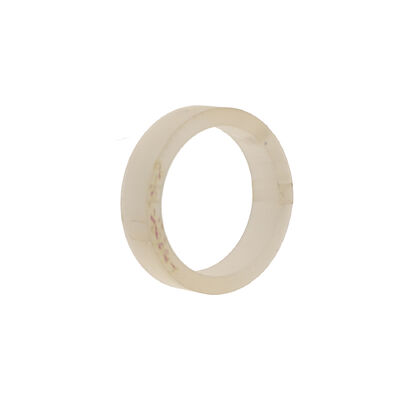

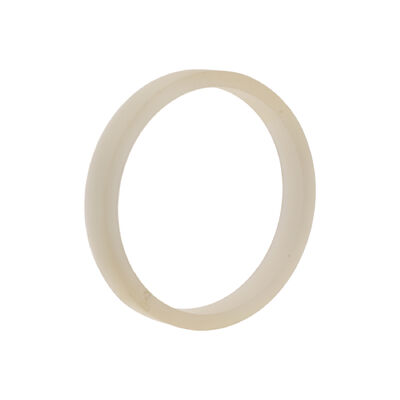

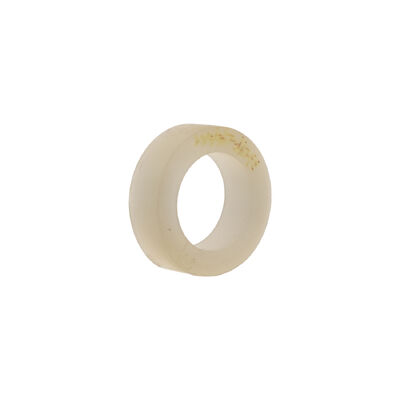

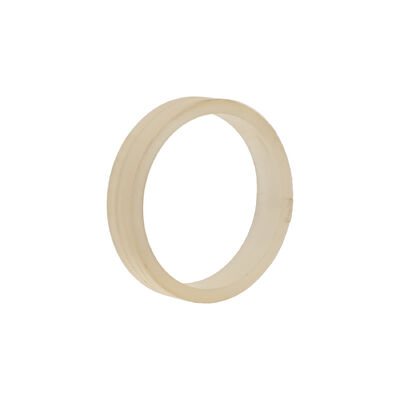

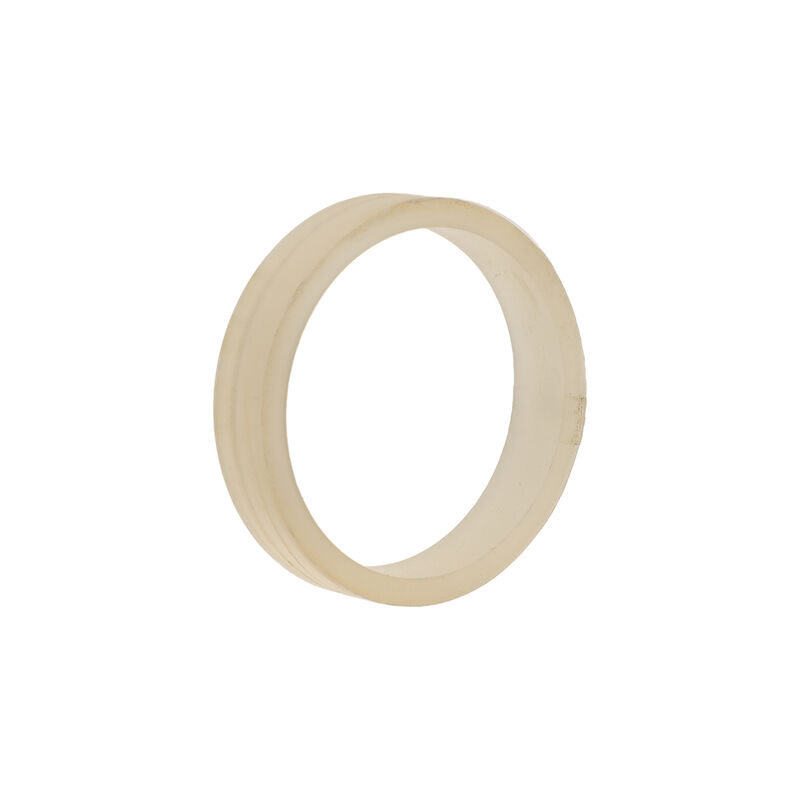

Manufactured with precision winding and UV-cured adhesives, this φ50 coil ensures high reliability, low signal loss, and vibration resistance. A perfect choice for high-accuracy gyroscope systems used in military and industrial environments.
Mainly used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.
This optical fiber coil adopts a multi-pole symmetric winding method and uses 135μm thin diameter optical fibers with UV-cured adhesive. The ring exhibits excellent temperature and vibration performance, and can be mass-produced with good product consistency.
| Feature | Unit | Index |
|---|---|---|
| Length | M | 260±5 |
| Optical Fiber | / | 80/135μm Optical Fiber |
| Layers | layer | 36 |
| Crosstalk | dB | ≤-22 |
| Full Temperature Crosstalk | dB | ≤-20 |
| Insertion Loss | dB | ≤0.2 |
| Constant Temperature Bias Stability (10s Smoothing) | °/h | ≤0.3 |
| Full Temperature Zero Bias Peak-to-Peak (10s Smoothing) | °/h | ≤1.5 |
| Temperature Range | °C | -45-80 |
| Temperature Rate of Change | °C/min | 1 |
| Geometric Dimensions | / | 29.0mm(ID) * 39.0mm(OD) * 9.2mm(H) |

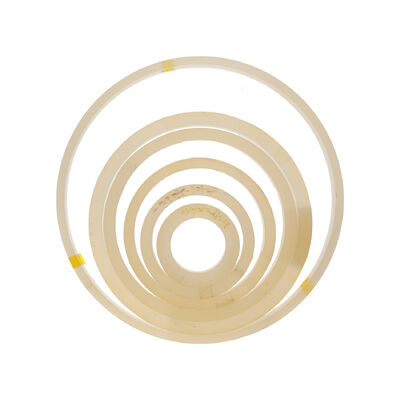

The geometric dimensions, length, and performance of the optical fiber coil can be designed according to customer's application requirements.
