| Tên thương hiệu: | Firepower |
| Số mẫu: | MGZ330HC-O1 |
| MOQ: | 1 |
| giá bán: | Có thể đàm phán |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 500/tháng |

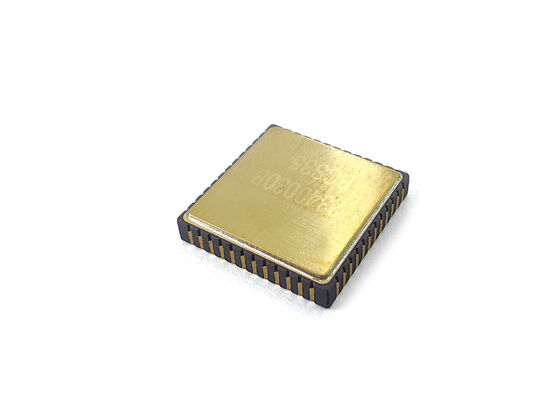

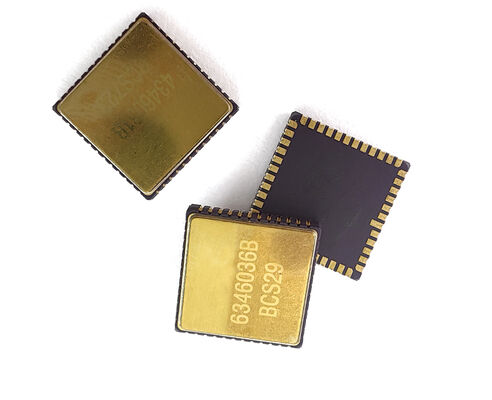

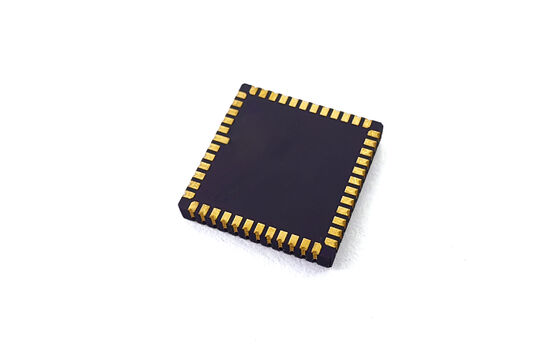

The MGZ330HC-O1 is a high-performance MEMS gyroscope chip delivering accurate and stable angular rate measurement for navigation and control systems. Featuring low noise, low drift, and excellent environmental adaptability, it is suitable for UAV flight control, inertial navigation, and industrial automation applications.
This wide bandwidth 300Hz MEMS gyroscope chip is optimized for dynamic applications requiring fast response and low latency. Suitable for high-speed UAV stabilization, robotics motion control, and vibration-intensive environments.
| Parameter | Unit | MGZ330HC-O1 |
|---|---|---|
| Measuring Range | deg/s | 400°/s |
| Bandwidth (-3dB, customizable) | Hz | 300Hz |
| Output Accuracy (Digital SPI) | bits | 24 |
| Output Rate ODR (customizable) | Hz | 12K |
| Delay (customizable) | ms | <1ms |
| Bias Stability (Allan variance) | deg/h (1-sigma) | <0.1°/h |
| Bias Stability (1-sigma, 10s) | deg/h (1-sigma) | <1°/h |
| Angular Random Walk (ARW) | deg/sqrt-h | <0.05°/√h |
| Scale Factor at 25°C | lsb/deg/s | 20000 lsb/deg/s |
| Scale Factor Repeatability (1-sigma) | ppm (1-sigma) | <100ppm |
| Scale Factor vs Temperature (1-sigma) | ppm (1-sigma) | <300ppm |
| Scale Factor Nonlinearity (1-sigma) | ppm | <300ppm |
| Noise (Peak to Peak) | deg/s | <0.25°/s |
| G-Value Sensitivity | deg/h/g | <3 |
| Power-On Time (Valid Data) | s | 750m |
| Sensor Resonant Frequency | Hz | 10.5k-13.5K |
| Impact (Powered On) | 500g, 1ms | |
| Impact Resistance (Powered Off) | 10000g, 10ms | |
| Vibration (Powered On) | 18g RMS (20Hz-2kHz) | |
| Operating Temperature | -40°C ~ +85°C | |
| Storage Temperature | -55°C ~ +125°C | |
| Supply Voltage | 5 +/- 0.25V | |
| Current Consumption | 45mA |
The MGZ330HC-O1 MEMS gyroscope chip is packaged in anti-static ESD-safe packaging within an export-grade carton box. Firepower brand, made in China.
Minimum order quantity: 1 piece
Sample delivery: within 7 days
Bulk supply capacity: 500 pieces per month
Payment terms: T/T
For price inquiry or to request samples, please contact us.
