| Tên thương hiệu: | Firepower |
| Số mẫu: | MGZ200HC-D1 |
| MOQ: | 1 mảnh |
| giá bán: | Có thể đàm phán |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 500 miếng mỗi tháng |

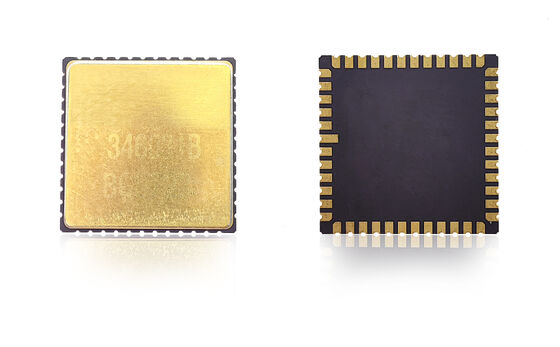

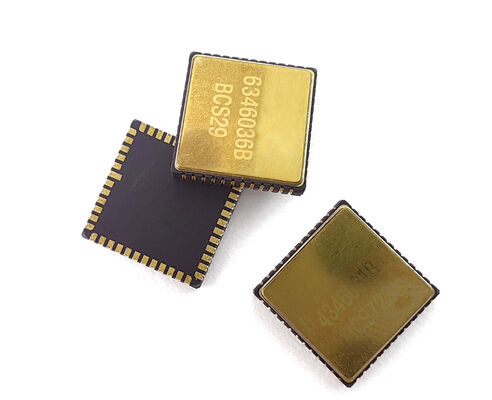

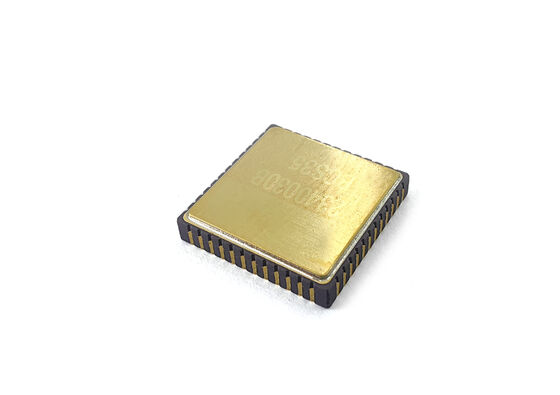

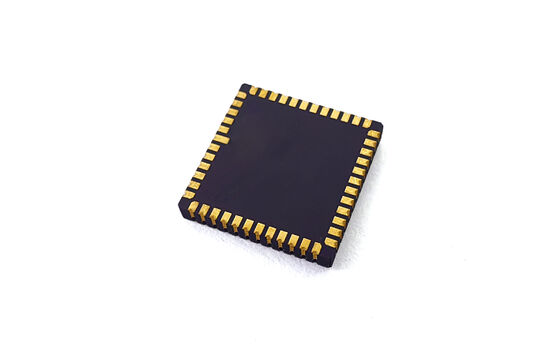

The MGZ200HC-D1 is a dual-axis MEMS gyroscope chip that measures pitch and roll angular rates simultaneously with 200°/s range and 200Hz bandwidth. Designed for industrial applications requiring compact 2-axis angular sensing, it delivers <0.15°/h bias stability and <0.08°/√h ARW per axis. The 24-bit SPI digital output at 12kHz ODR provides synchronized dual-channel data for real-time platform leveling, 2-axis gimbal control, and construction equipment attitude monitoring. This dual-axis configuration reduces system complexity and PCB footprint compared to using two single-axis sensors.
| Performance | Unit | MGZ200HC-D1 |
|---|---|---|
| Range (per axis) | deg/s | 200 |
| Band Width @3DB (per axis) | Hz | 200 |
| Output accuracy (digital SPI) | bits | 24 |
| Output rate (ODR per axis) | Hz | 12K |
| Delay | ms | <1.5 |
| Bias stability (per axis) | deg/hr(1σ) | <0.15 |
| Bias stability (1σ 10s) | deg/hr(1σ) | <1.5 |
| Bias error over temperature (1σ) | deg/hr(1σ) | <20 |
| Scale factor at 25°C | lsb/deg/s | 16000 |
| Scale factor repeatability (1σ) | ppm(1σ) | <50 |
| Scale factor vs temperature (1σ) | ppm(1σ) | <200 |
| Scale factor non-linearity (1σ) | ppm | <200 |
| Angular random walk (ARW) | °/√h | <0.08 |
| Noise (Peak to Peak) | deg/s | <0.3 |
| G Value sensitivity | °/hr/g | <2 |
