| Tên thương hiệu: | Firepower |
| Số mẫu: | MGC150- P05 |
| MOQ: | 1 |
| giá bán: | 1500$ |
| Điều khoản thanh toán: | L/C,D/A,D/P,T/T,Western Union |
| Khả năng cung cấp: | 500/tháng |

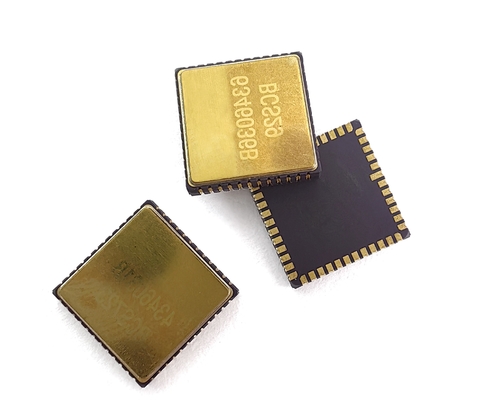

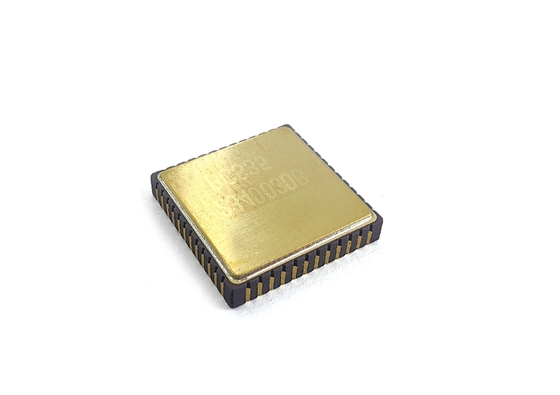

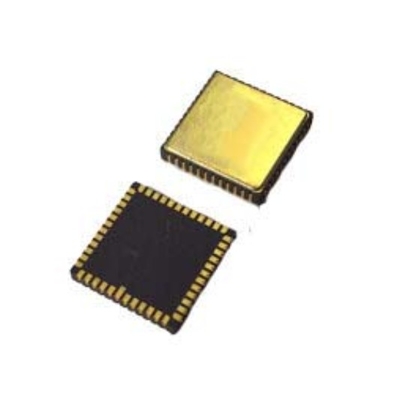

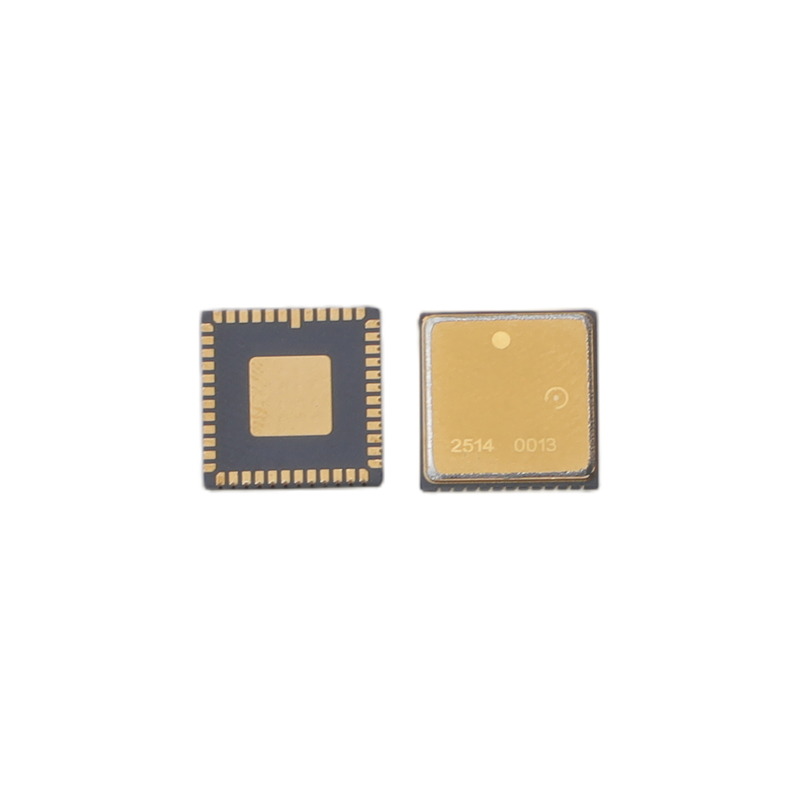

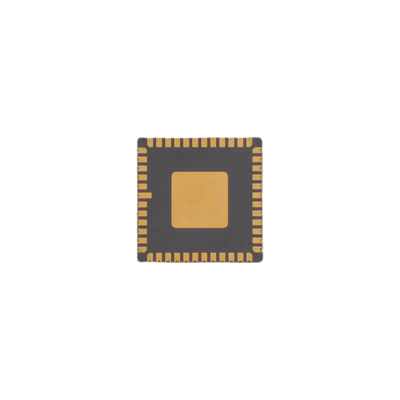

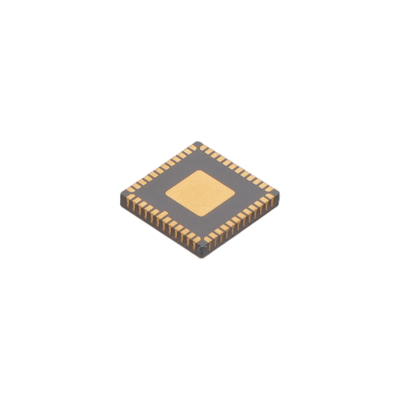

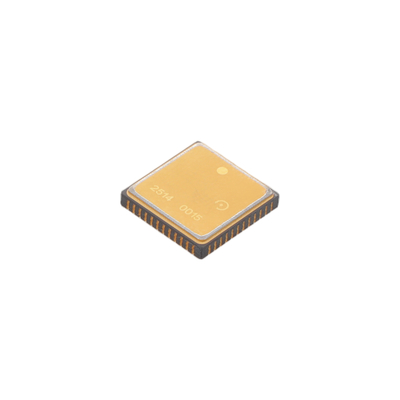

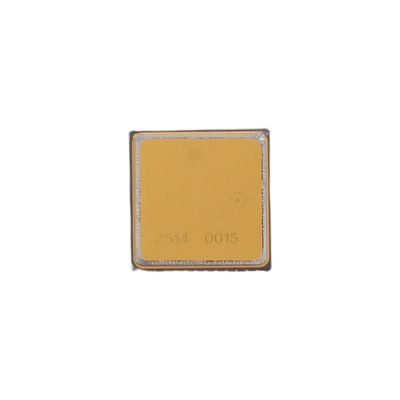

Tactical-grade single-axis MEMS gyroscope chips for Unmanned Systems
Product Description
MGC series single-axis MEMS gyroscopes deliver highly stable and low-noise angular velocity outputs in a compact ceramicpackage with fully digital interface. With bias stability as low as 0.5 dph, angle random walk down to 0.06°/√h, and wide bandwidth up to ≥100 Hz, these sensors are ideal for demanding applications requiring high precision and long-term repeatability.They are especially suitable for drone and unmanned systems' orientation and attitude control, as well as for integration into advanced navigation systems such as IMU and INS
Technical Parameters
| Parameter | MGC150- P05 | MGC500- P1 | MGC500- P2 | MGC500- P3 | Unit |
| Range |  150 |
500 |
500 |
500 |
dps |
| Bias @ 25℃ | 15 | 45 | 45 | 45 | dph |
| Noise @ 10Hz | 0.001 | 0.0012 | 0.0012 | 0.0012 | mdps/√ H z |
| Bias Stability (10 s smoothing) |
0 .5 | 1.0 | 2.0 | 3.0 | dph |
| Angle Random Walk |
0.06 | 0.08 | 0.08 | 0.08 | °/√ h |
| Bias Repeatability (Weekly Repeatability |
2 | 2 | 2 | 2 | dph |
| Scale Factor | 38550 | 11185 | 11185 | 11185 | LSB/ dps |
| Scale Factor Repeatability (Weekly Repeatability) |
30 | 30 | 30 | 30 | ppm |
| Non - linearity @ Full Scale (FS) |
100 | 100 | 100 | 100 | ppm |
| Non - linearity @ 200 dps |
50 | 50 | 50 | 50 | ppm |
| Bandwidth | 30 | ≥100 | ≥100 | ≥100 | Hz |
| G - Sensitivity | 2 | 3 | 3 | 3 | dph/g |
| Vibration Rectification Coefficient @ 6.06 grms |
0.4 | 0.3 | 0.3 | 0.3 | dph/g2 |
| Vibration Reliability (Power - on)) |
4000g , 0. 5ms | ||||
Inertial Navigation Systems
Platform Stabilization
Attitude and Heading Reference System
Precision Agriculture and Industrial Automation
UAV and Autonomous Vehicle
