| Tên thương hiệu: | Firepower |
| Số mẫu: | MGC150- P05 |
| MOQ: | 1 |
| giá bán: | 1500$ |
| Điều khoản thanh toán: | L/C,D/A,D/P,T/T,Western Union |
| Khả năng cung cấp: | 500/tháng |

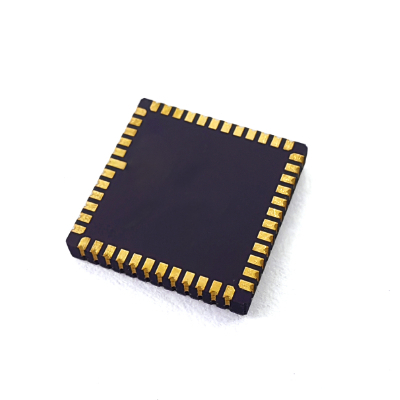

High Precision Single-axis MEMS gyro chip with 0.5°/h bias for marine and stabilization
Product Description

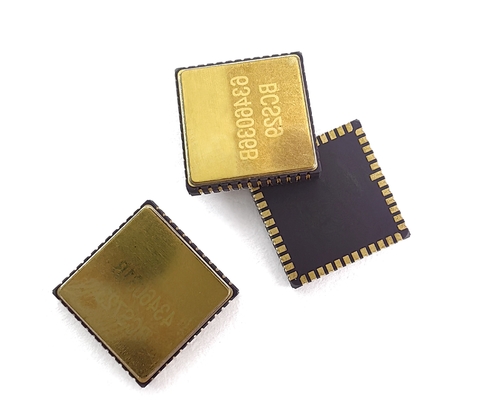

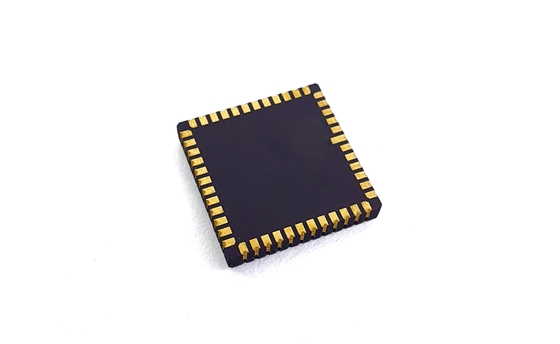

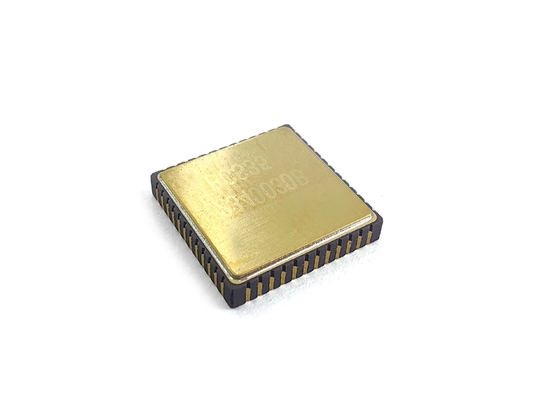

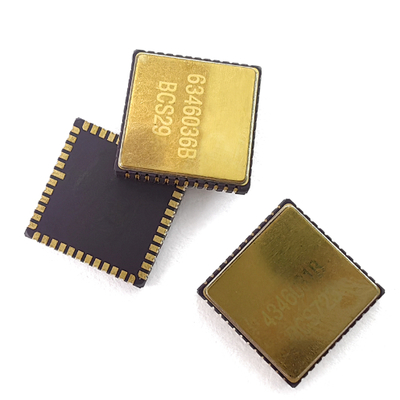

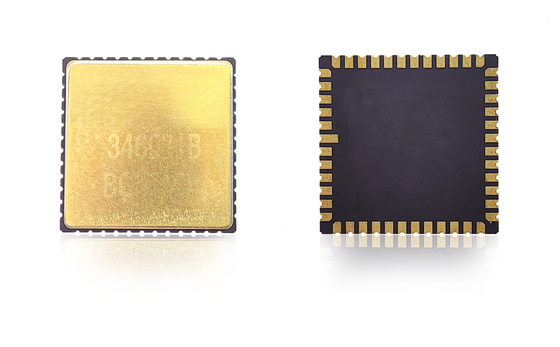

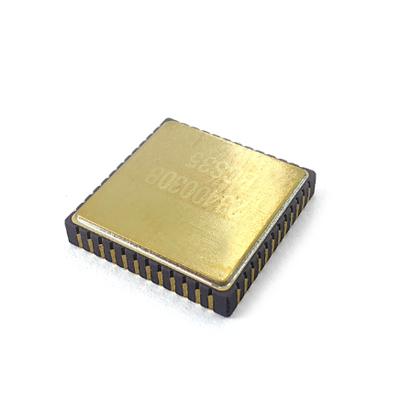

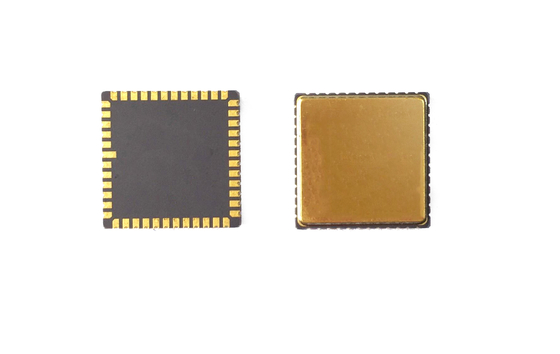

MGC series single-axis MEMS gyroscope chips are high-performance angular rate sensors designed for precision motion sensing applications. Housed in a compact and robust ceramic package, they feature a fully digital interface that simplifies integration into embedded systems.
With ultra-low bias instability down to 0.5°/h, angle random walk (ARW) as low as 0.06°/√h, and wide bandwidth up to ≥100 Hz, the MGC series offers exceptional performance in both dynamic and static environments. Their low noise density and high bias repeatability make them well-suited for applications requiring long-term stability, precision, and reliability.
These gyroscopes chip are ideal for orientation, stabilization, and inertial control in a wide range of advanced systems, including:
Drones and unmanned aerial vehicles
Autonomous ground vehicles
Robotics and motion control platforms
Inertial Measurement Units
Inertial Navigation Systems
Missile and aerospace subsystems
Technical Parameters
| Parameter | MGC150- P05 | MGC500- P1 | MGC500- P2 | MGC500- P3 | Unit |
| Range |  150 |
500 |
500 |
500 |
dps |
| Bias @ 25℃ | 15 | 45 | 45 | 45 | dph |
| Noise @ 10Hz | 0.001 | 0.0012 | 0.0012 | 0.0012 | mdps/√ H z |
| Bias Stability (10 s smoothing) |
0 .5 | 1.0 | 2.0 | 3.0 | dph |
| Angle Random Walk |
0.06 | 0.08 | 0.08 | 0.08 | °/√ h |
| Bias Repeatability (Weekly Repeatability |
2 | 2 | 2 | 2 | dph |
| Scale Factor | 38550 | 11185 | 11185 | 11185 | LSB/ dps |
| Scale Factor Repeatability (Weekly Repeatability) |
30 | 30 | 30 | 30 | ppm |
| Non - linearity @ Full Scale (FS) |
100 | 100 | 100 | 100 | ppm |
| Non - linearity @ 200 dps |
50 | 50 | 50 | 50 | ppm |
| Bandwidth | 30 | ≥100 | ≥100 | ≥100 | Hz |
| G - Sensitivity | 2 | 3 | 3 | 3 | dph/g |
| Vibration Rectification Coefficient @ 6.06 grms |
0.4 | 0.3 | 0.3 | 0.3 | dph/g2 |
| Vibration Reliability (Power - on)) |
4000g , 0. 5ms | ||||
