| Tên thương hiệu: | Firepower |
| Số mẫu: | NF701A |
| MOQ: | 1 |
| giá bán: | 5000$ |
| Điều khoản thanh toán: | L/C,T/T,D/P |
| Khả năng cung cấp: | 500/PCS |

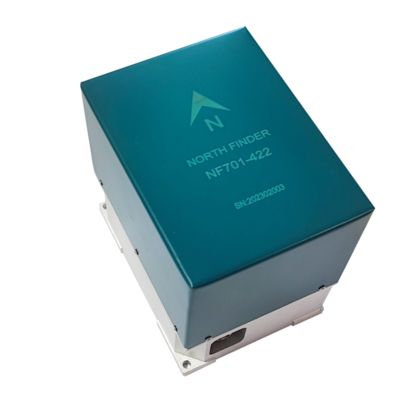

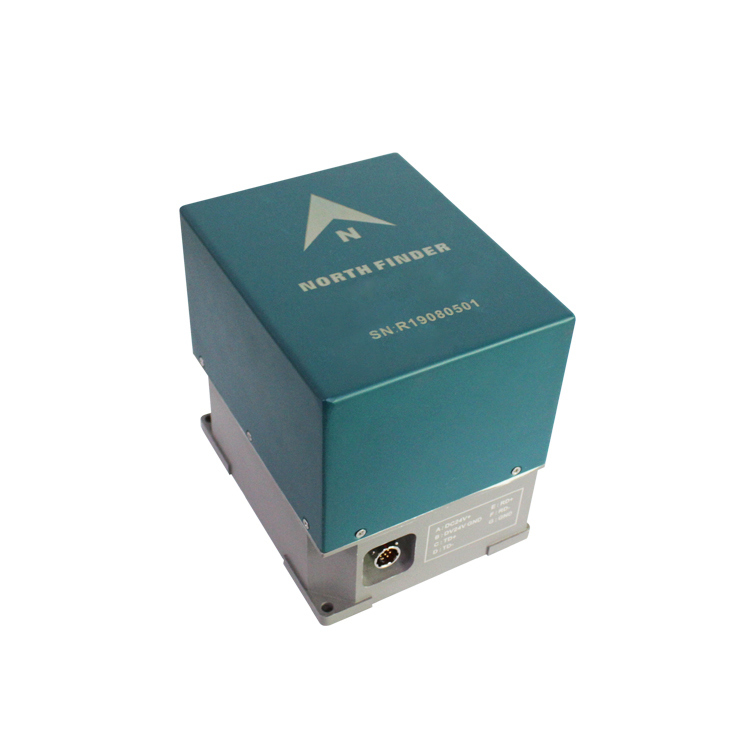

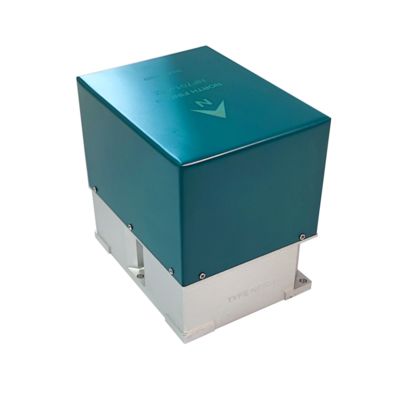

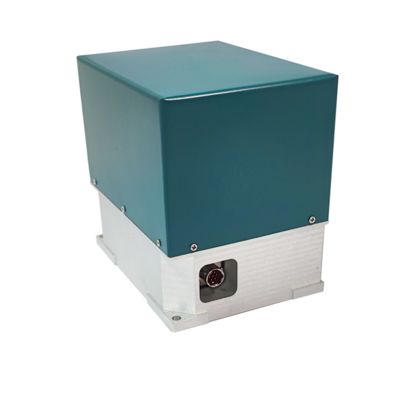

The Fiber Optic Gyroscope North Finder provides precise true-north orientation for navigation, mapping, and weapon guidance systems. This all-in-one device automatically detects the Earth's rotational rate and computes accurate azimuth and attitude data within 3 minutes.
The system integrates a high-accuracy FOG, accelerometer, motorized turntable, and embedded computer. With ≤0.3° north-seeking accuracy and ≤0.05° horizontal accuracy, it delivers stable, repeatable performance for UAVs, armored vehicles, and surveying equipment.
Dimension (mm): 115 * 90 * 110
Insulation resistance: The insulation resistance between independent circuits and between circuits and shell shall not be less than 10 MΩ under standard atmospheric conditions.
| Plug Pin Number | Functional Definition |
|---|---|
| a | DC12V ~24V |
| b | DC12V ~24V GND |
| c | TD+ |
| d | TD- |
| e | RD+ |
| f | RD- |
| g | GND |
