| Tên thương hiệu: | FIREPOWER |
| Số mẫu: | MFOG-095 |
| MOQ: | 1 |
| giá bán: | 500$ |
| Điều khoản thanh toán: | L/C,T/T |
| Khả năng cung cấp: | 500/tháng |

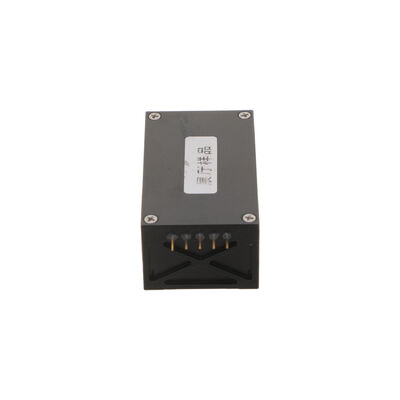

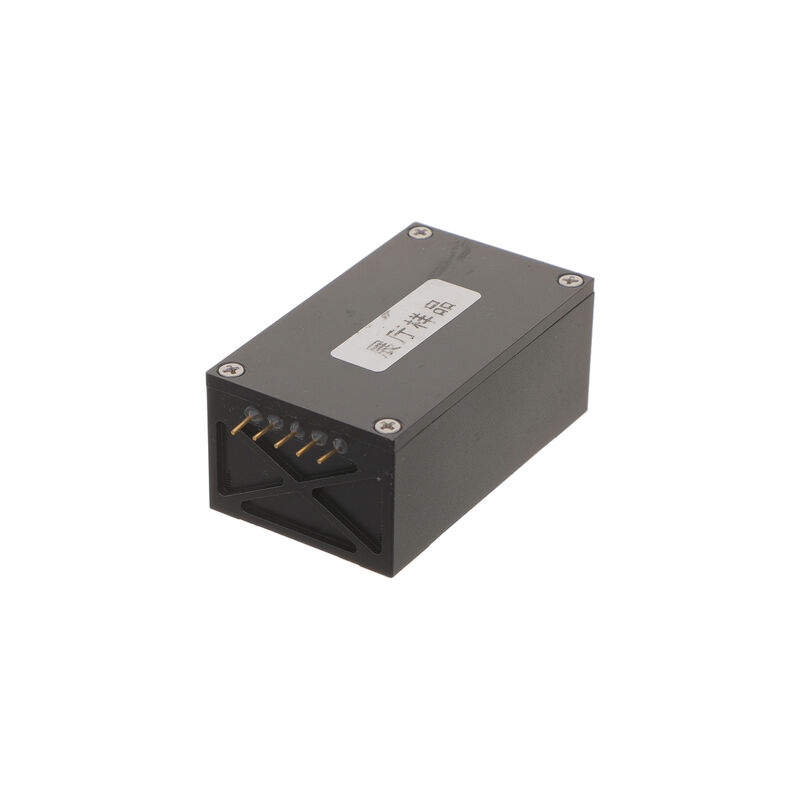

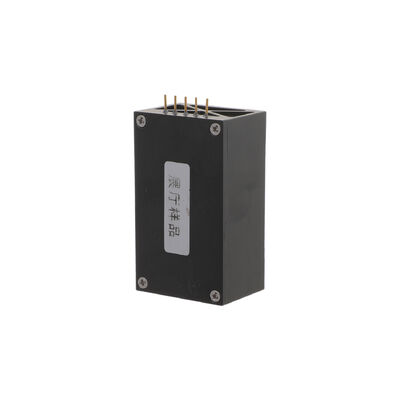

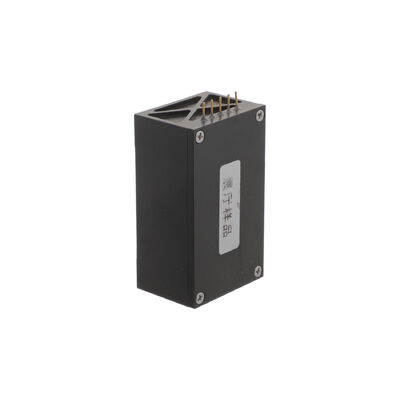

The MFOG-095 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic technologies. Based on the Sagnac effect, this product incorporates multiple micro-nano fiber devices and detects phase differences generated by counter-propagating light beams through sophisticated processing and feedback systems.
Comprising optical path components, circuit components, and structural elements, this gyroscope features a simple design with no moving or wearing parts. It offers rapid startup, compact dimensions, and lightweight construction, making it ideal for carrier attitude control and measurement applications in industrial motion control and antenna stabilization systems.
Dimensions: 60mm × 35mm × 25.5mm (excluding connector)
Weight: ≤70g
Random vibratio:Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.
| Parameter | Specification |
|---|---|
| Range (°/s) | ±150 |
| Scale Factor (mV/°/s) | ≥10 |
| Zero-Bias Stability (10s, 1σ, °/H) | ≤2 |
| Zero-Bias Repeatability (1σ, °/H) | ≤2 |
| Zero Bias (°/s) | ≤0.05 |
| 3dB Bandwidth (Hz) | ≥1000 |
| Random Walk (°/√H) | ≤0.02 |
| Start-up Time (s) | ≤1 |
| Power Supply (V) | 5±0.15 |
| Power Consumption (W) | ≤0.7 |
