| Tên thương hiệu: | FIREPOWER |
| Số mẫu: | MFOG-24 |
| MOQ: | 1 |
| giá bán: | 500$ |
| Điều khoản thanh toán: | L/C,T/T |
| Khả năng cung cấp: | 500/tháng |

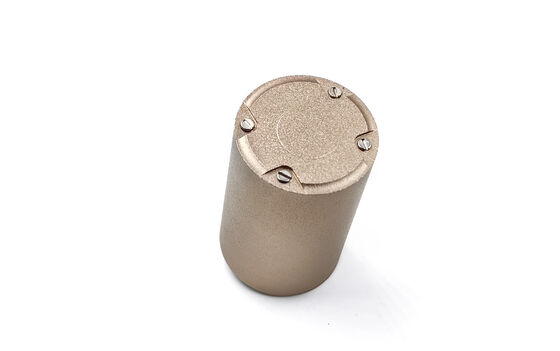

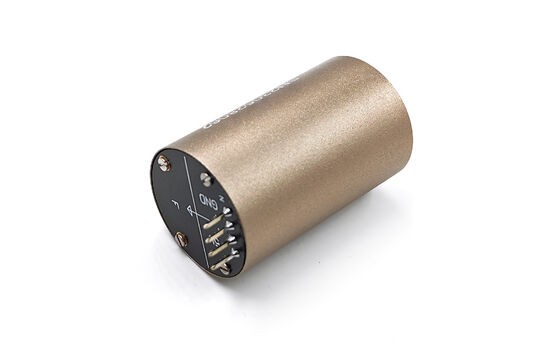

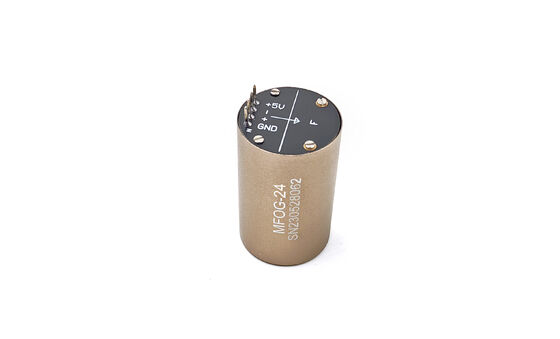

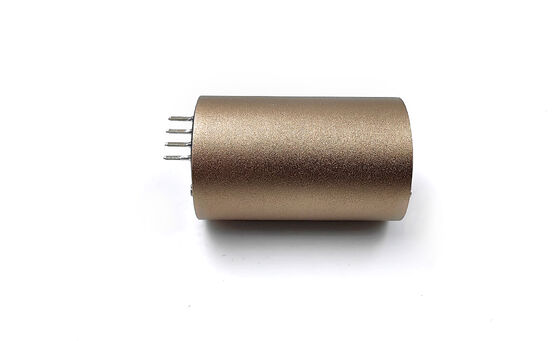

The MFOG-24 micro-nano fiber optic gyroscope is a high-precision angular rate sensor integrating optical, mechanical, and electronic technologies. Based on the Sagnac effect, it incorporates a variety of micro-nano fiber optic devices and realizes angular rate detection by measuring, processing, and feedback-controlling the phase difference generated by two counter-propagating light beams.
The product mainly consists of optical components, electronic circuits, and structural assemblies. It features:
The MFOG-24 is well suited for attitude measurement and control applications of various carriers.
| Serial No. | Project | MFOG-24 | MFOG-24-AN |
|---|---|---|---|
| 1 | Range (°/s) | ±500 | ±300 |
| 2 | Scale factor | 3600(LSB/°/s) | 7mv/°/s |
| 3 | Scale factor nonlinearity (ppm) | 300 | ≤1000 |
| 4 | Zero-bias stability (10s, 1σ, °/h) | ≤1.5 | ≤2 |
| 5 | Zero-bias repeatability (1σ, °/h) | ≤1.5 | ≤2 |
| 6 | Angular random walk (°/h 1/2) | ≤0.03 | ≤0.04 |
| 7 | Zero bias (°/s) | ≤0.02 | ≤0.05 |
| 8 | 3dB Band Width (Hz) | ≥300 | ≥450 |
| 9 | Power supply (V) | 5+0.15 | 5+0.15 |
| 10 | Power Consumption (W) | ≤1.5 | ≤0.7 |
| 11 | Dimension (mm) | φ24X39 | |

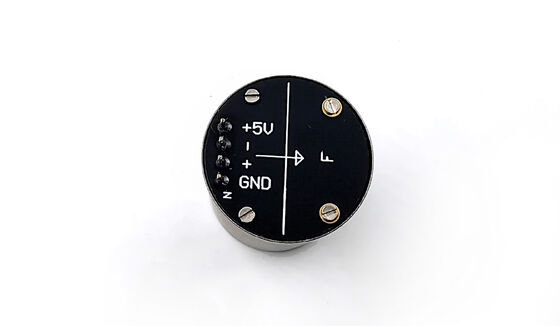

| Parameter | +5V Specification |
|---|---|
| Voltage | 4.85V~5.15V |
| Ripple | 20mV |
| Electric current | 0.2A |
